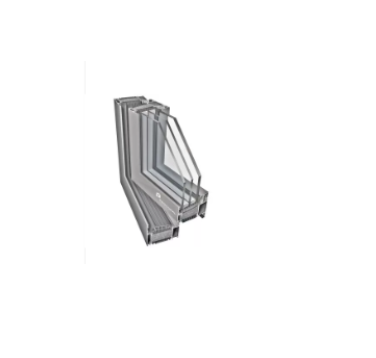

The PROCURAL PE96HI is a high-performance insulated aluminium window system designed to meet the stringent thermal insulation requirements of energy-efficient and passive buildings. Its advanced three-cavity construction, 62mm thermal breaks and bi-component central gaskets provide exceptional thermal efficiency and long-term performance.
The PE96HI system combines advanced thermal insulation with
modern aluminium architecture, making it an ideal solution
for energy-efficient and passive buildings.
Featuring a 96mm frame depth, 106mm sash depth and multi-cavity
62mm thermal breaks, the system delivers excellent thermal
performance while maintaining a strong and durable construction.
The system supports large-dimension window constructions,
flush external sash-to-frame appearance and a wide range of
corner joint solutions, providing architects with greater
design flexibility for contemporary projects.
Uf From 0.82 W/m²K
Uw = 0.66 W/m²K
Class 4
Highest Performance
Class E1950
1950 Pa
Class C5
Up To 2000 Pa
Advanced three-cavity aluminium profile system for enhanced thermal performance.
Multi-cavity 62mm thermal breaks provide excellent thermal insulation.
Window sashes are flush with the frame on the exterior for a clean architectural finish.
Supports large-size window constructions for modern architectural applications.
Available with 22mm high glazing bead configurations.
Available with 28mm high glazing bead configurations.
Wide variety of corner joint solutions for architectural flexibility.
Powder coating, anodising and wood-effect finishes available.
96 mm
106 mm
W 1700 × H 2300 mm
W 1400 × H 2800 mm
Up To 200 kg
39 - 62 mm
39 - 74 mm
Tested burglary resistance up to RC2 classification.
Available with enhanced protection up to RC3 classification.
Designed for energy-efficient and passive building applications.
Excellent air, water and wind resistance performance.
Compatible with Euro hardware groove systems for flexible hardware selection.
Hardware groove can accommodate hardware commonly used in PVC and wood windows.
Advanced central gasket construction enhances thermal and weather performance.
Available in powder-coated, anodised and wood-effect surface finishes.
Ideal for passive and highly energy-efficient residential buildings.
Suitable for modern projects focused on reduced energy consumption.
Suitable for projects requiring large-dimension window constructions.
Excellent solution for contemporary homes, apartments and developments.
Experience exceptional thermal insulation, large-dimension capabilities, advanced weather resistance and modern architectural flexibility with the PROCURAL PE96HI high-performance aluminium window system designed for energy-efficient and passive buildings.
